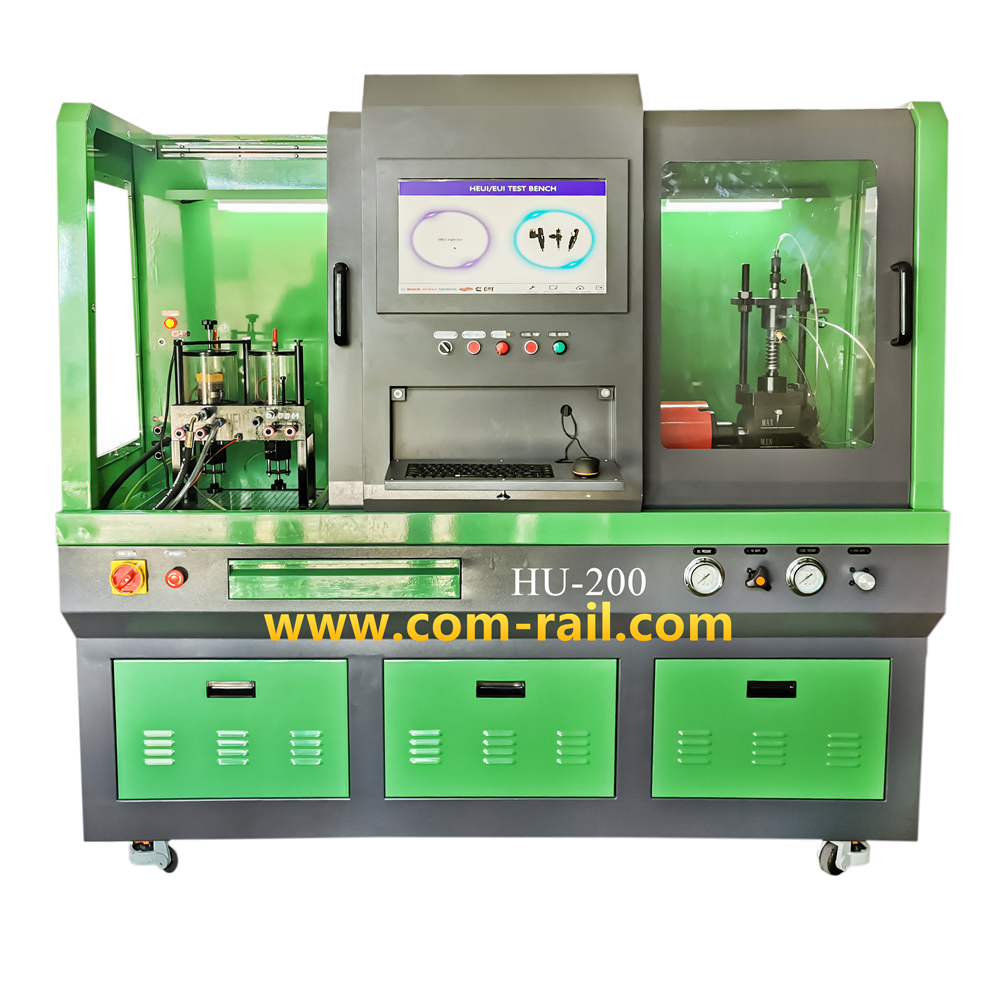

Today introduce our test bench HU-200, it is to test EUI/EUP and HEUI. It can test EUI/EUP of BOSCH, CUMMINS, DELPHI, CAT, VOLVO, SCNIA, etc.  and also test Caterpillar C7/C9 HEUI hydraulic common rail injector. The equipment simulates the principle of electronic control of diesel engines. The main drive adopts frequency speed adjusting technology, supplies large output torque and has ultra-low noise. The oil pump speed, fuel injection pulse width, and cambox rotating speed of the test bench are all controlled and collected by industrial computers in real time. The oil volume and flow are displayed, and the data is automatically compared and debugged by 19” LCD screen. The test bench adopts driving signal modulation, control precision is high, operation is reliable and stable. The shell is manufactured by CNC equipment, which is more precise and durable.

 Feature

1. Main drive adopts the speed change by frequency change.

2. Controlled by industrial computer in real time, linux operating system.

3. Oil quantity is measured by flow sensor and displayed on 19〃 LCD .

4. Injector drive signal width can be adjusted

5. It can test solenoid valve resistance and inductance

6. Database can be searched, saved and printed optionally.

7. Software update more easily.

8. Remote control is possible.

Function

1. Can test CAT C12 C13 C15 C18 EUI.

2. Can test VOLVO EUI.

3. Can test BOSCH EUI and EUP.

4. Can test CUMMINS EUI.

5. Can test NANYUE WEITE EUI made in China.

6. Can test CAT HEUI sealing and injection volume.

6. Can search, save and print data optionally.
