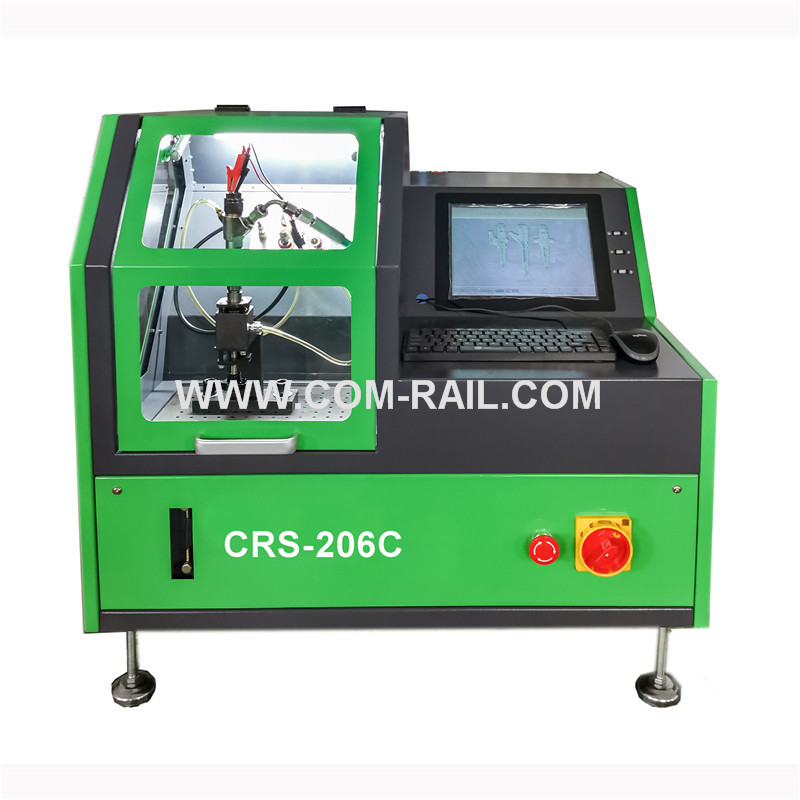

High pressure CRDI common rail injector tester EPS205 mini nozzle injector tester CRS-206C
CRS-206C can test 4 brands of common rail injector,as well as piezo valve. the main drive adopts the servo control technology. Pump speed, injection pulse width and rail pressure are all controlled by industrial computer by real time, oil quantity is displayed by flow meter sensor, compare debug data automatically. 10.4″ LCD touch screen display,more than 1000 kinds of injectors data,search, print(optional).
>>>TECHNICAL PARAMETER
1. Pulse width: 0.1-3ms.
2. Fuel temperature: 38±2℃.
3. Rail pressure: 0-1800 bar.
4. Test oil filter precision: 5μ.
5. Input power: AC 220V.
6. Rotation speed: 0~3000RPM.
7. Oil tank capacity: 30L.
8. Overall dimension(MM): 700×810×820.
9. Weight: 157KG.
>>>CHARACTERISTIC
1. Main drive adopts the servo control technology
2. Controlled by industrial computer in real time.
3. Oil quantity is measured by flow meter sensor and displayed on 10.4″ LCD .
4. Rail pressure can be tested in real time, it adopts closed-loop control system, and it contains the high-pressure protection function.
5. Data can be searched, saved and printed (optional).
6. Pulse width of the injector drive signal can be adjusted.
7. Protection function of short-circuit.
8. Plexiglass protective cover, easy and safe operation.
9. Using 220V AC single-phase power supply.
Our service :
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
After-Sales Service
Training how to install the machine, training how to use the machine.
