EPS205 Diesel Common Rail Injector Test Bench with The Cleaning Injectors Functions Injector Cleaner Machine CRS-206C Universal
- Power:220V /1PH
- Applicable Models:universal
- Combination:SDK
- Place of Origin:China
- Brand Name:COMMON
- Model Number:CRS-206C
- Warranty:12 Months
- Pulse width:0.1~3ms
- Continuous injection times:0~1800
- Fuel temperature:38±2°C
- Test oil filter precision::5μ.
- Input power::AC 220V.
- Usage:Auto testing machine
- rail pressure:0- 1800bar
- rotation speed:0-3000rpm
- Oil tank capacity:30L.
- Overall dimension(MM)::700*810*820.
- Certification:CE
-

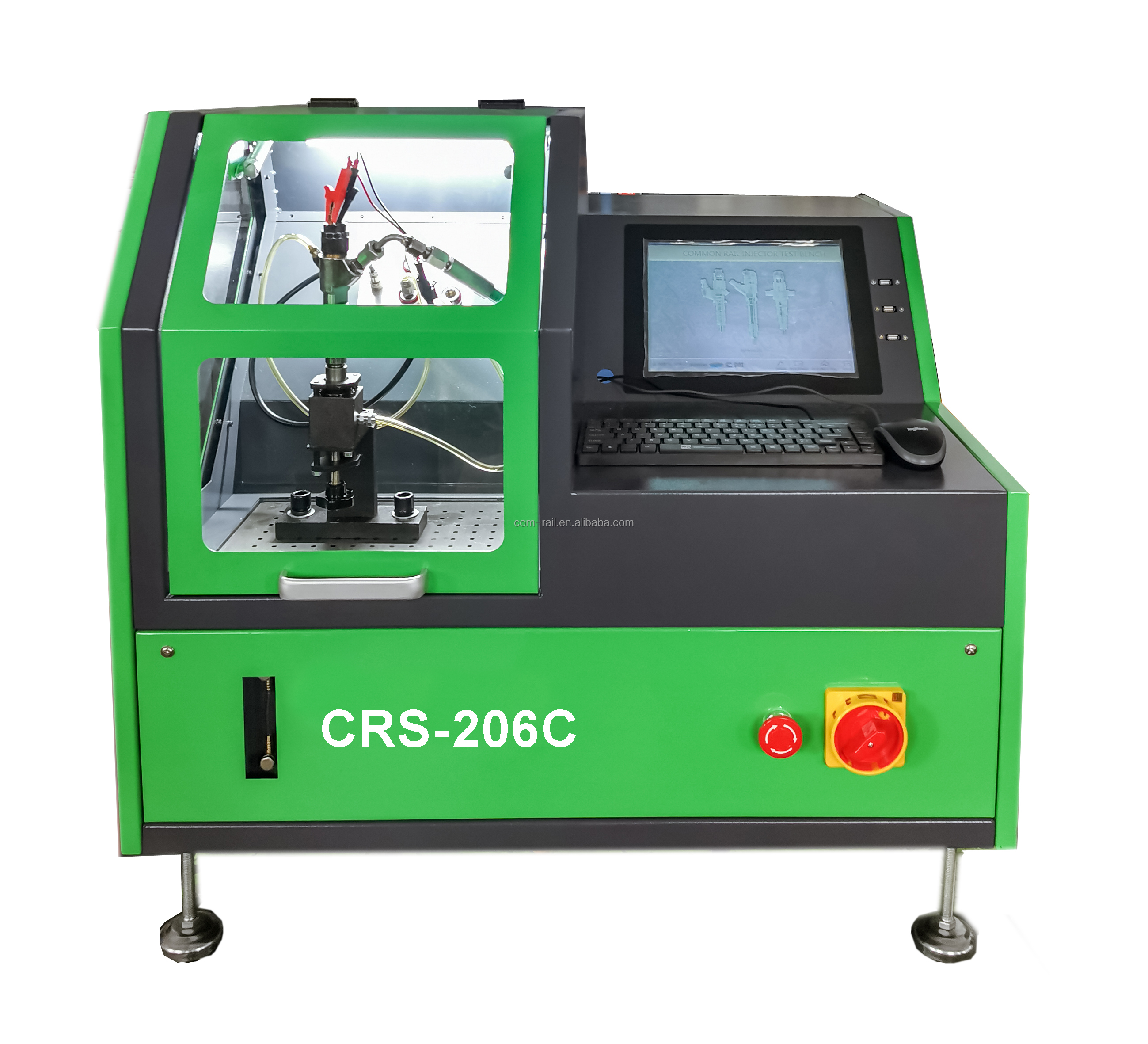

CRS-206C can test 4 brands of common rail injector,as well as piezo valve. the main drive adopts the servo control technology. Pump speed, injection pulse width and rail pressure are all controlled by industrial computer by real time, oil quantity is displayed by flow meter sensor, compare debug data automatically. 10.4″ LCD touch screen display,more than 1000 kinds of injectors data,search, print(optional).
This is the testing device that use of AC 220V power supply, is specifically for the customers who don’t have 380V three-phase AC
>>>CHARACTERISTIC
1. Main drive adopts the servo control technology
2. Controlled by industrial computer in real time.
3. Oil quantity is measured by flow meter sensor and displayed on 10.4″ LCD .
4. Rail pressure can be tested in real time, it adopts closed-loop control system, and it contains the high-pressure protection function.
5. Data can be searched, saved and printed (optional).
6. Pulse width of the injector drive signal can be adjusted.
7. Protection function of short-circuit.
8. Plexiglass protective cover, easy and safe operation.
9. Using 220V AC single-phase power supply.>>>FUNCTION
1. test brand: 4 brands.
2. test the seal of injector.
3. test the max. oil quantity of injector.
4. test the backflow oil quantity of injector.
5. test the cranking oil quantity of injector.
6. test the pre-injection of injector.
7. test the average oil quantity of injector.>>>TECHNICAL PARAMETER
1. Pulse width: 0.1-3ms.
2. Fuel temperature: 38±2℃.
3. Rail pressure: 0-1800 bar.
4. Test oil filter precision: 5μ.
5. Input power: AC 220V.
6. Rotation speed: 0~3000RPM.
7. Oil tank capacity: 30L.
8. Overall dimension(MM): 700×810×820.

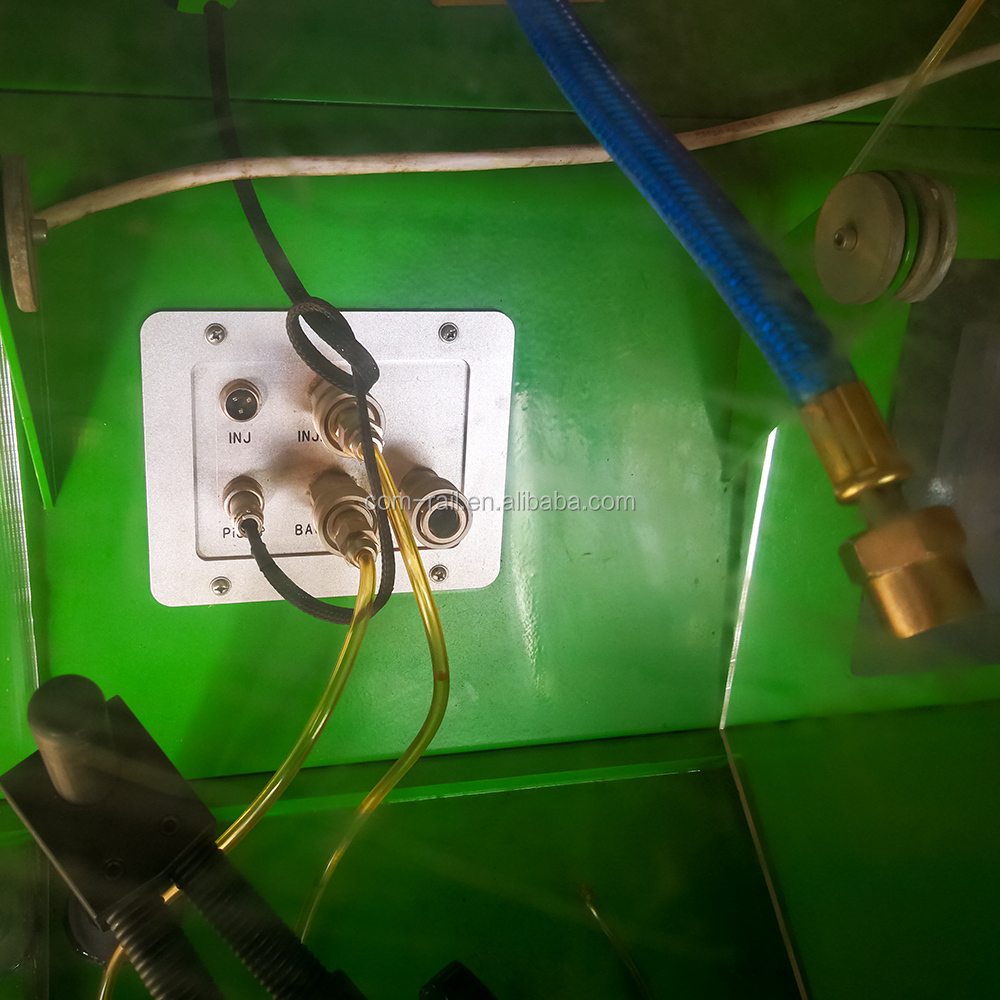

9. Weight: 150KG.Details show :

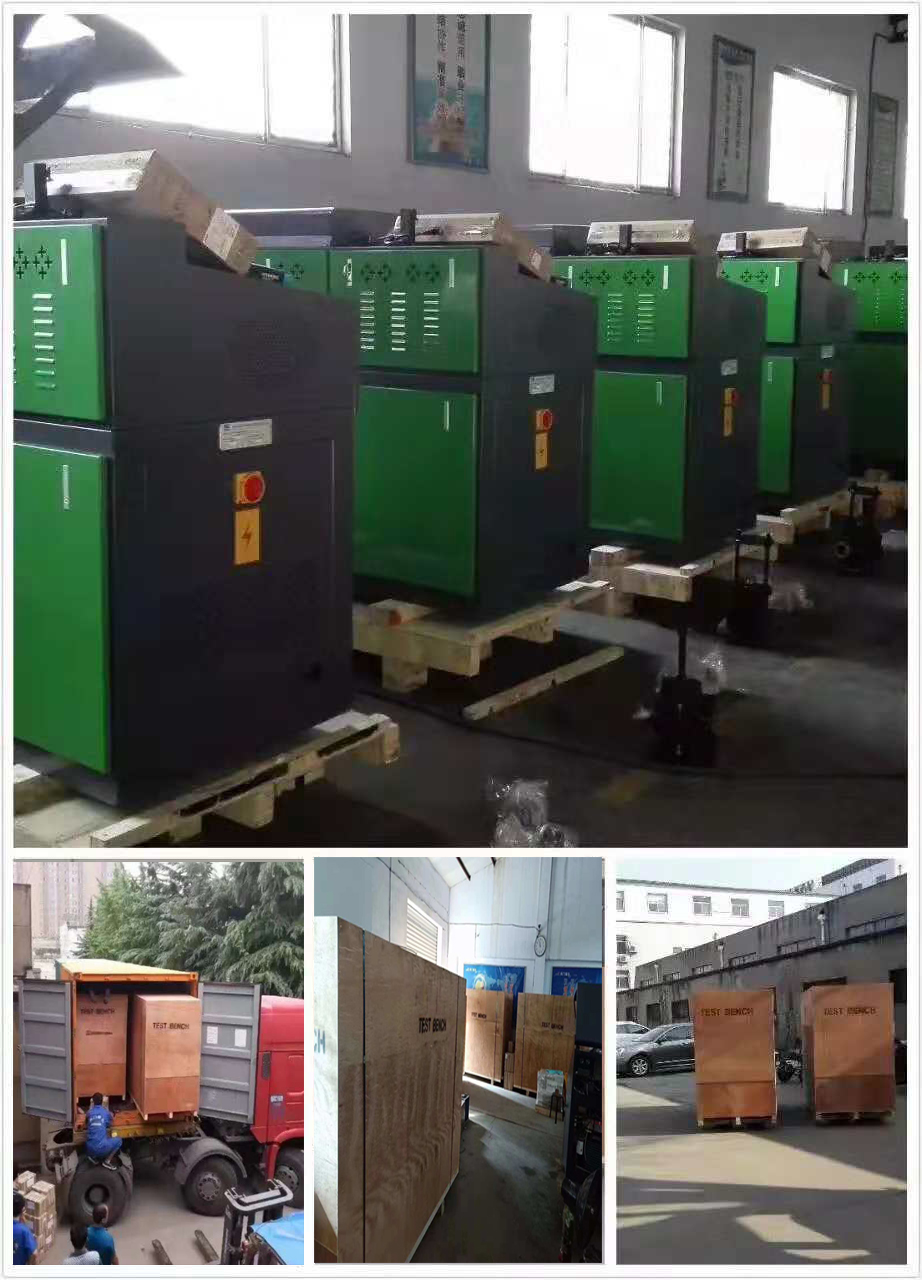

Packing:
Our service :
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.After-Sales Service
Training how to install the machine, training how to use the machine.FAQ:
Q1. What is your terms of payment?
A: T/T 30% pre-payment ,we’ll show you the photos of the products and packages before delivery,payment 70% .Q2. How about your delivery time?
A: Generally, it will take 3-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.Q4: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.We have common rail spare parts

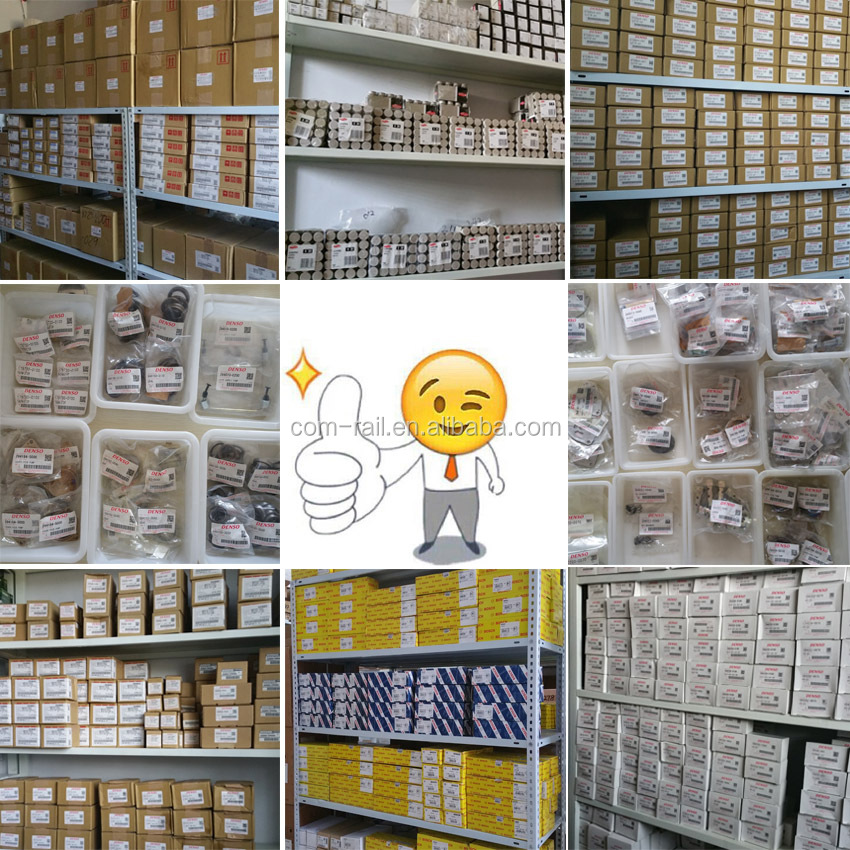

We supply more than 3000 kinds of common rail parts.
Our products and test bench have been sold to many countries.
Welcome to come to company
Every year, we participate in the Frankfurt Auto Show, Russ ia and Shanghai. Now we are recognized by more foreign customers.
More and more customers come to our company to visit and study, participate in the test bench operation training, and improve our international reputation. Welcome to visit our company.
Shipping :
High quality, wear durability, asy adjusting,favorable comment .
Stock
In stock ,enough .
Payment Terms
T/T, Western Union, MoneyGram, PayPal, Etc.
Shipping way
By Air, By sea Etc.
MOQ
1 set
Delivery Time
Within 3-7 days after payment .
