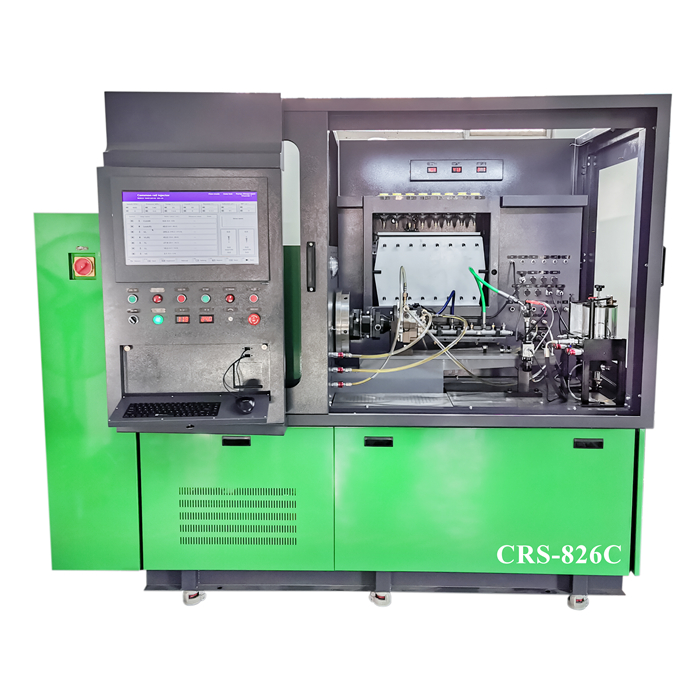

CRS-826c is the most powerful multifunctional fuel test bench with cylinders

CRS-826C is the most powerful multifunctional fuel test bench with cylinders, it can test common rail injector,

common rail pump, EUI/EUP, HEUI, VP37, VP44, RED4, CAT 320D pump and actuation pump,Mechanical pump

CRS-826Ccan fulfill the remote assistance by internet and make the maintenance easy to operate.

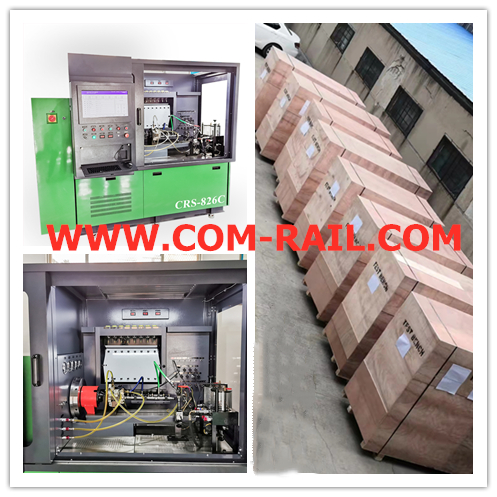

CRS-826C

科门瑞尔 (2)



Feature:

  1. Main drive adopts the speed controlled by frequency system.
  2. Controlled by industrial computer in real time, linux operating system. Fulfill the remote assistance by internet and make the maintenance easily to operate.
  3. Oil quantity is measured by high precision flow sensor and displayed on 19” LCD .
  4. It generates BOSCH QR code.
  5. Rail pressure controlled by DRV, pressure measured in real time and controlled by closed loop, high-pressure protection function.
  6. Oil tank and fuel tank temperature controlled by forced cooling control system.
  7. Injector drive signal pulse is adjustable.
  8. It has short circuit protection function.
  9. It has monitor display of  DC 24V 12V 5V.
  10. Added with oil back pressure.
  11. EUI/EUP test system is optional.
  12. HEUI test system is optional, high pressure supplied by plunger pump, pressure is stable.
  13. Can test CAT 320D high pressure common rail pump.
  14. Can test HEUI actuating pump.

 function.
    1 common rail pump test, Test brands : BOSCH、DENSO、DELPHI、SIEMENS.
    2 common rail injector test, BOSCH、DENSO、DELPHI、SIEMENS and piezo injector.

Optional detection of EUI/EUP.

    3. Test CAT common rail injector and CAT 320D common rail pump.

    4. Test CAT middle pressure actuation pump.

    5. Test CAT HEUI middle pressure common rail injector.

    6. Optionally installation of Bosch 6,7,8,9 digit, Denso 16,22,24,30 digit, Delphi C2i, C3i QR code.

    7. Optionally installation of injector BIP.

    8. Optionally AHE stroke measurement.

    9. mechanic pump test

If want to learn about more informtion,please contact us,we will offer more photo and vedio.

welcome to order.


Post time: Jan-21-2022
