1.Introduction

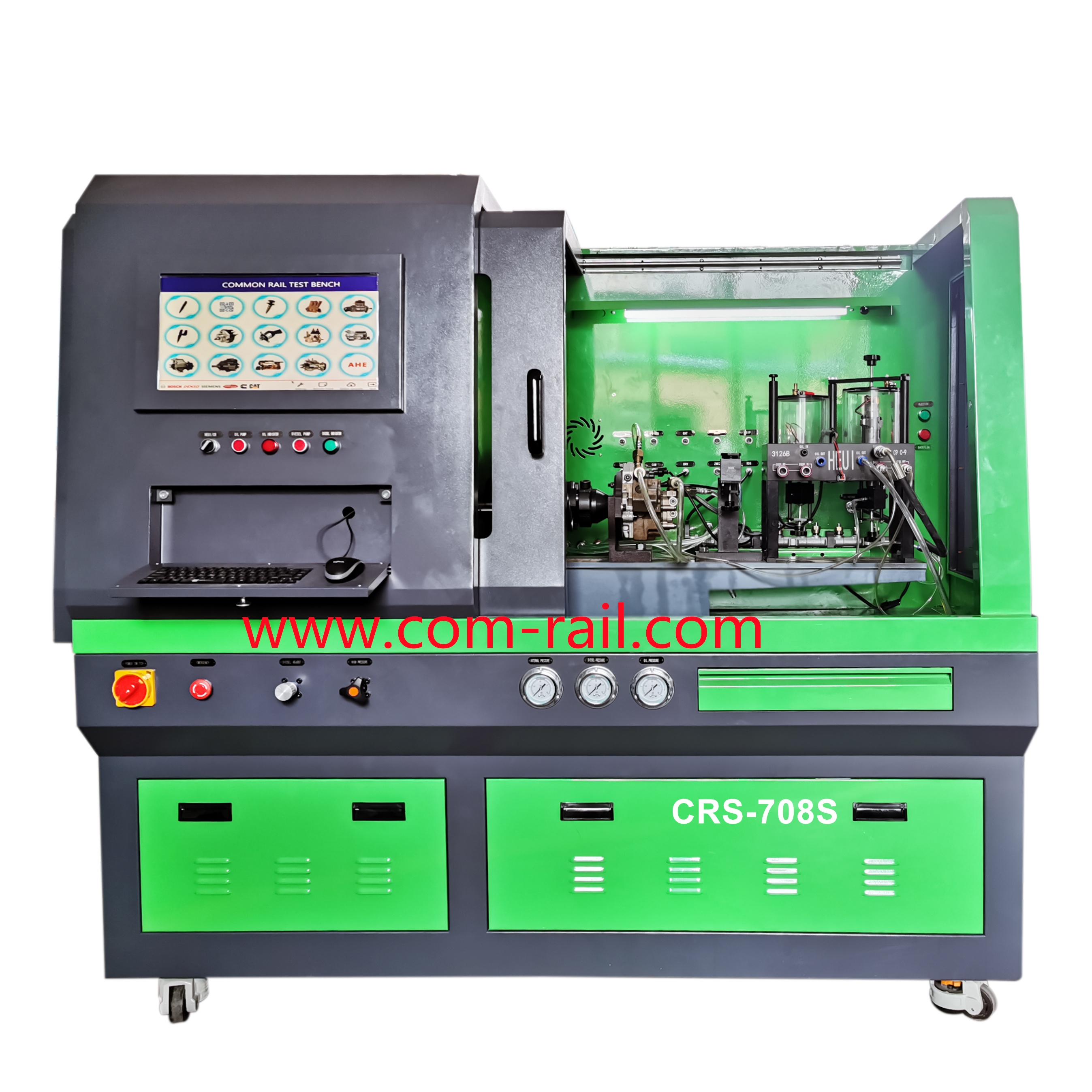

CRS-708S test bench is special device to test the performance of high-pressure common rail pump and injector, it can test common rail pump, injector of BOSCH, SIEMENS, DELPHI and DENSO and piezo injector. It simulates the injection principle of common rail motor completely and the main drive adopts the most advanced speed change by frequency change. High output torque, ultra low noise. It tests the common rail injector and pump by flow sensor with more precise and stable measurement. It can add EUI/EUP test system and CAT C7 C9 , test CAT 320D common rail pump. Pump speed, injection pulse width, oil measurement and rail pressure are all controlled by industrial computer by real time. The data is also obtained by computer. 19〃 LCD screen display makes the data more clear, more than 2900 kinds of data can be searched and used. Advanced technology, steady performance, precise measurement and convenient operation.
CRS-708S can fulfill the remote assistance by internet and make the maintenance easy to operate.
2. Feature
1. The main engine drive adopts frequency conversion speed regulation.
2. Controlled by industrial computer in real time, linux or WIN7 operating system. Fulfill the remote assistance by internet and make the maintenance easily to operate.
3. Oil quantity is measured by high precision flow sensor and displayed on 19” LCD .
4. Rail pressure controlled by DRV, pressure measured in real time and controlled by closed loop, high-pressure protection function.
5. Injector drive signal pulse is adjustable.
6. It has short circuit protection function.
7. It can add EUI/EUP testing equipment.
8. It can test CAT 320D high pressure common rail pump.
9. It can add HEUI testing system.
10. It can test injector solenoid valve resistance and inductance.
11. It can test common rail injector capacitance.
12. It can test the opening pressure of the injector.
13. Highest pressure can reach 2500bar.
14. Software data upgrade easily.
15. Remote control.
3. Function
3.1 common rail pump test
1. Test brands : BOSCH、DENSO、DELPHI、SIEMENS.
2. Test the sealing of common rail pumps.
3. Test the internal pressure of common rail pump.
4. Test ratio solenoid of common rail pump.
5. Test feed pump function of common rail fuel pump.
6. Test flow of common rail pump.
7. Test rail pressure in real time.
3.2 common rail injector test
1. Test brands : BOSCH、DENSO、DELPHI、SIEMENS and piezo injector.
2. Test the sealing of injector.
3. Test the pre-injection of the injector.
4. Test the maximum oil quantity of the injector.
5. Test the starting oil quantity of the injector.
6. Test the average oil quantity of the injector.
7. Test the oil return quantity of the injector.
8. Data can be searched, printed and saved into database.
3.3 other function
1. Optionally it can test EUI/EUP.
2. It can test CAT common rail injector and CAT 320D common rail pump.
3. It can test CAT HEUI middle pressure common rail injector.
4. It can add Bosch 6,7,8,9 digits, Denso 16,22,24,30 digits, Delphi C2i, C3i QR code.
5. Can add BIP function.
6. It can add AHE stroke test.
