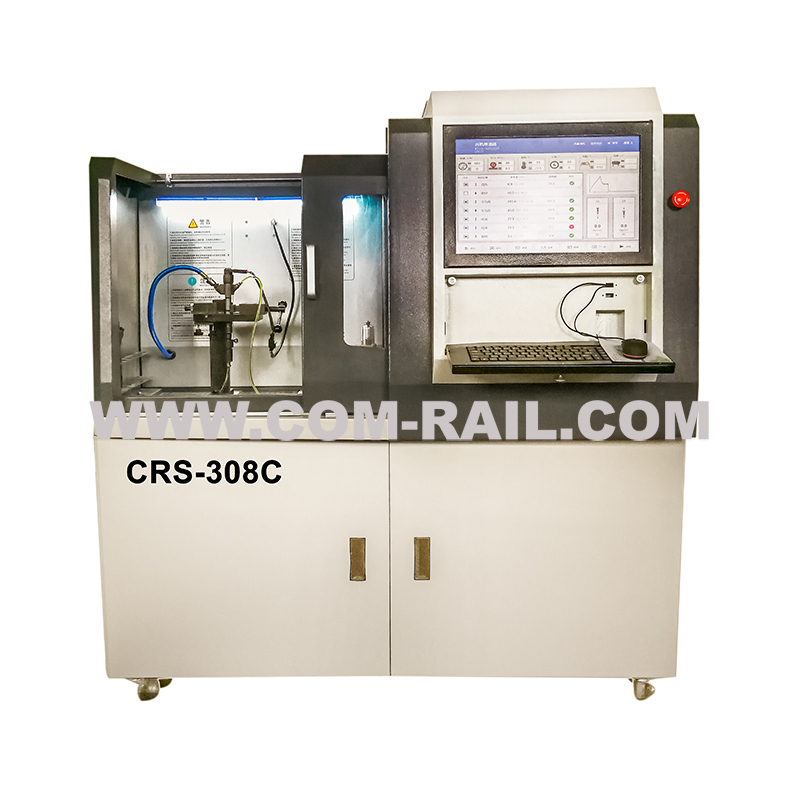

CRS-308C common rail injector tester, common rail tester, common rail test stand, common rail QR coding test bench, injector tester
it can test common rail injector of BOSCH, SIEMENS, DELPHI and DENSO as well as piezo injector.
BIP functin, QR code function available.
Windows operating system, Linux operating system both available.
Function
test brand: BOSCH, DENSO, DELPHI, SIEMENS.
test the seal of high-pressure common rail injector.
test the pre-injection of high-pressure common rail injector.
test the max. oil quantity of high-pressure common rail injector.
test the cranking oil quantity of high-pressure common rail injector.
test the average oil quantity of high-pressure common rail injector.
test the backflow oil quantity of high-pressure common rail injector.
Data can be searched, saved and printed (optional).
Technical Parameter
Pulse width: 0.1-3ms adjusstable.
Fuel temperature: 40±2℃.
Rail pressure: 0-2400 bar.
Test oil filter precision: 5μ.
Input power: 380V/3Phase or 20V/3 phases.
Rotation speed: 100~3000RPM.
Oil tank capacity: 30L.
Overall dimension(MM): 1180×770×1510.
Weight: 300KG.
